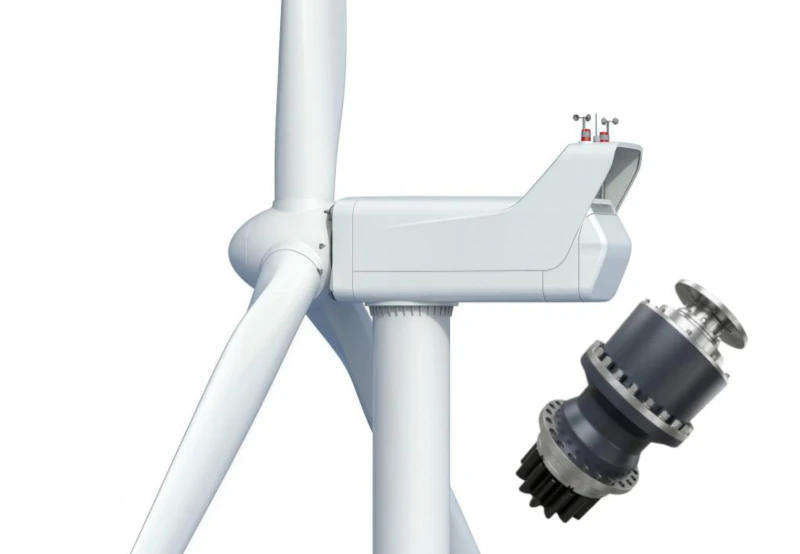

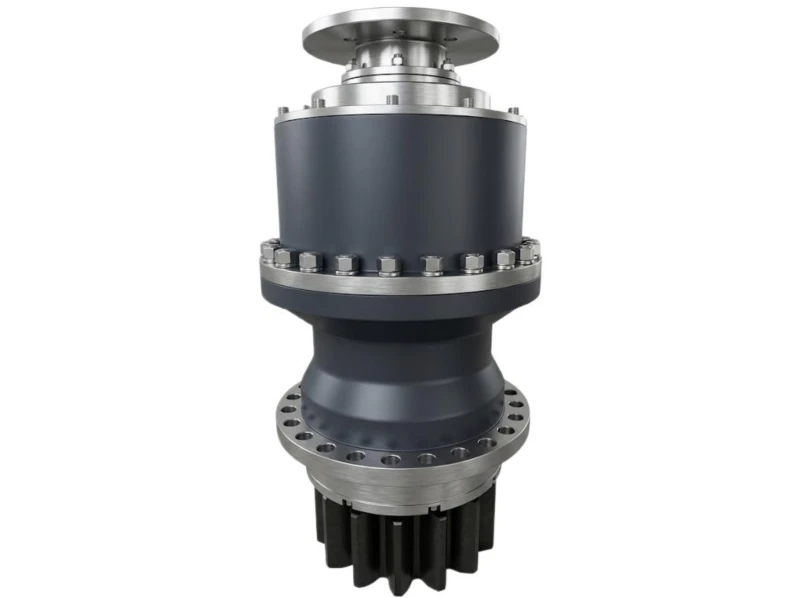

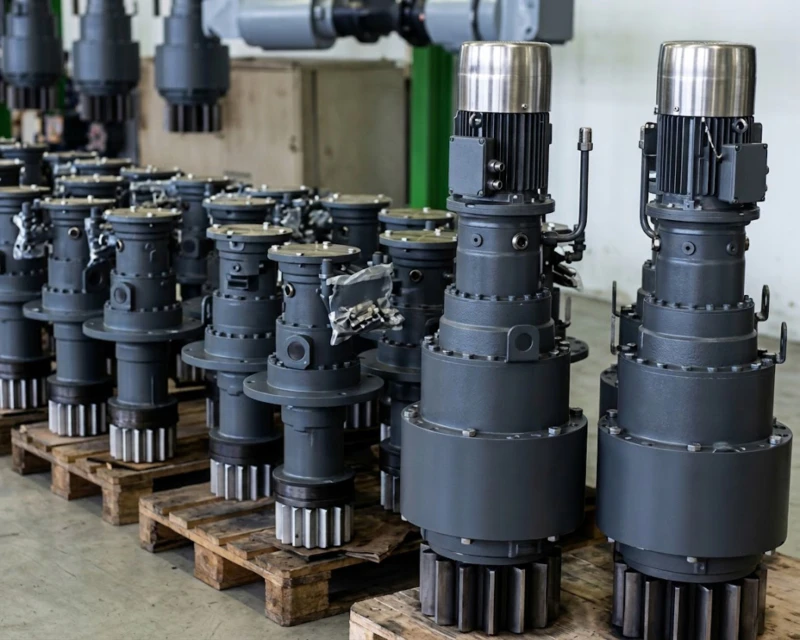

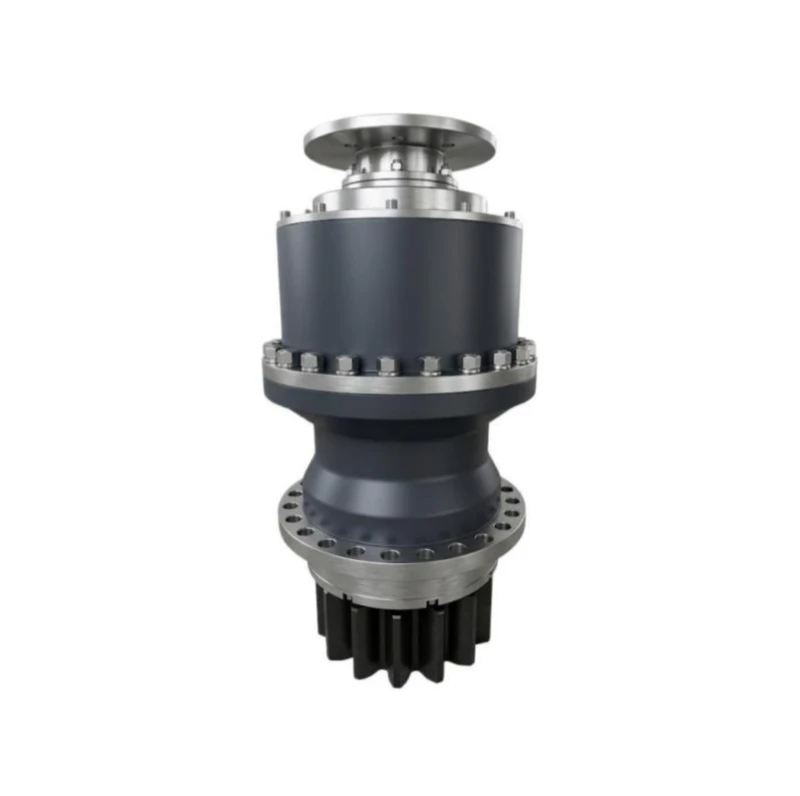

Wind Turbine Drive Planetary Gearbox

Yaw Drive — Nacelle Orientation

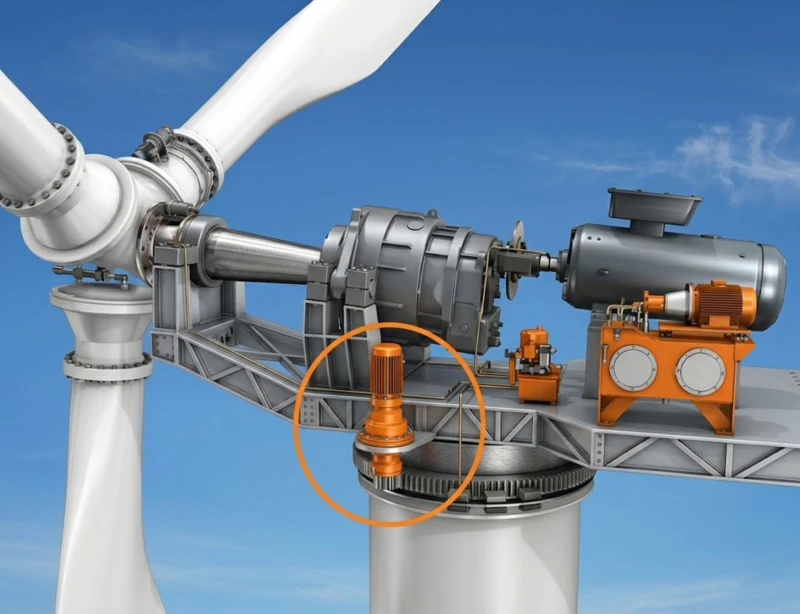

The yaw planetary gearbox drives the nacelle rotation ring, keeping the rotor continuously aligned with the wind direction. A wind direction sensor signals the control system, which activates 2–12 yaw gearboxes simultaneously. Each unit drives an output pinion meshing with the yaw ring gear on top of the tower.

The required gear ratio of 1:1,200 – 1:2,000 is achieved via 3–5 planetary stages — converting the motor's high-speed low-torque input into the ultra-low-speed, ultra-high-torque output needed to rotate a nacelle weighing 80–400 tonnes.

Pitch Drive — Blade Angle Control

The pitch drive gearbox rotates each turbine blade around its longitudinal axis, adjusting the angle of attack from 0° (full power) to 90° (feathered / storm protection). Each blade has its own independent pitch gearbox and electric motor with an emergency battery backup system.

With 2–4 planetary stages, pitch gearboxes provide ratios of 1:100 – 1:1,500, enabling precise torque control of the blade's pitch ring gear during start-up, partial load operation, and emergency feathering within 5–8 seconds.

Ultra-High Gear Ratio in Compact Package

Multi-stage planetary architecture achieves ratios up to 1:2,000 in a coaxial, nacelle-friendly form factor — delivering the enormous yaw torques required to rotate 100–400-tonne nacelles with millimetric precision.

Integrated Electromagnetic Brake

Built-in multi-disc electromagnetic brake holds nacelle or blade position when the motor is de-energized. Fail-safe spring-engaged design ensures braking under power failure — critical for both yaw and pitch safety.

Bolt-On OEM Replacement

Dimensionally compatible with Bonfiglioli 700TW, Liebherr, ZF Wind Power, and Bosch Rexroth yaw/pitch gearboxes. Direct wind turbine yaw drive gearbox replacement — no nacelle re-drilling, no flange adaptor, no downtime beyond the swap itself.

Eccentric Backlash Adjustment

The entire housing can be eccentrically rotated on its mount to fine-tune pinion-to-ring-gear backlash on site — without shimming or re-drilling. Essential for matching worn yaw ring gear tooth profiles during field replacement.

Offshore-Grade Environmental Sealing

IP66 multi-stage FKM lip seal system with marine-grade epoxy coating provides full protection against salt spray, condensation, and humidity ingress — standard for offshore wind, optionally available for demanding onshore sites.

Extreme Temperature Operation

Cold-climate package with synthetic PAO lubricant, low-temperature grease seals, and optional gear oil preheating enables reliable start-up and operation from –40°C — qualifying for IEC Class T cold-climate sites.

🏗️ Multi-Stage Coaxial Architecture

🔬 Materials & Manufacturing

Q1 · What is the difference between a yaw drive gearbox and a pitch drive gearbox?

Q2 · Why is the gear ratio of the yaw planetary gearbox so high (up to 1:2,000)?

A large wind turbine nacelle can weigh 200–400 tonnes and must be rotated against friction in the yaw bearing, aerodynamic drag, and gravity loads on the rotor. The output speed of the yaw gearbox is extremely low — around 0.5–1.5 rpm — to ensure smooth, controlled nacelle movement without oscillation. A standard IEC motor runs at 750–1,500 rpm, so a ratio of:

• 1:1,200 is typical for 1.5–2.5 MW onshore turbines
• 1:1,500 – 1:2,000 is used for 5–10 MW+ offshore units with larger nacelle masses

Q3 · Is this a certified bolt-on wind turbine yaw drive gearbox replacement for Bonfiglioli 700TW?

Yes. Our unit is dimensionally verified against Bonfiglioli 700TW series drawings including:

• Motor flange bolt pattern and pilot diameter (IEC B5)
• Housing mounting bolt circle and flange face
• Output pinion module and tooth count
• Overall envelope dimensions for nacelle fit clearance

If your turbine uses a non-standard 700TW variant, send us the turbine model and original part number — we cross-reference our database within 24 hours.

Q4 · How many yaw gearboxes does a wind turbine need, and how are they arranged?

The number depends on turbine power class:

• 0.75 – 1.5 MW: 2–3 yaw gearboxes, evenly spaced around the yaw ring
• 2 – 3.6 MW: 4–6 units, synchronously controlled
• 5 – 10 MW+: 8–12 units, grouped in pairs with shared motor controllers

All units in a yaw array must run with the same gear ratio and pinion module to ensure uniform load sharing around the yaw ring circumference.

Q5 · What causes wind turbine yaw gearbox failure, and how does your design address this?

The three most common failure modes and how our design mitigates them:

• Micropitting / gear tooth wear: Carburized and ground DIN 5 gears with optimized tooth profile reduce contact stress. PAO synthetic oil option further reduces wear under oscillating loads.
• Bearing fatigue: FAG/SKF tapered roller bearings rated to ≥175,000 h L10 under combined radial and thrust loads from the yaw ring reaction forces.
• Seal failure and lubricant contamination: Multi-lip FKM seal system with labyrinth pre-seal prevents moisture ingress — the leading cause of premature bearing and gear failure in nacelle environments.

Q6 · What is the recommended lubrication and maintenance schedule for the wind turbine gearbox?

Offshore turbines with access constraints: PAO synthetic + extended 5-year oil change intervals align with typical offshore O&M visit schedules, reducing crane vessel mobilization costs.

Q7 · Can the pitch drive gearbox operate the emergency feathering function on battery backup?

Yes. The pitch drive gearbox is compatible with battery pitch backup (BPB) systems. In emergency feathering mode, the turbine's pitch controller disconnects grid power and switches to the on-board battery to drive the pitch motor — commanding the gearbox to rotate each blade from 0° to 90° within 5–8 seconds. Key requirements met by our design:

• Motor-gearbox interface thermally rated for the high short-duration current draw of emergency feathering
• Electromagnetic brake engages immediately when battery voltage drops to prevent blade back-drive
• Low-temperature FKM seals and PAO oil ensure pitch function at –40°C (cold-climate package)

Q8 · What certifications and standards does the wind turbine gearbox comply with?

Each unit undergoes no-load run test, noise level measurement, vibration signature analysis, and static brake torque verification before shipment. Test certificates provided with every unit.

Q9 · How do I select the correct planetary gearbox for wind turbine yaw control?

Send us the following data — our engineers confirm the correct model within 24 hours:

Q10 · What are lead times, and is stock available for urgent wind turbine yaw drive gearbox replacement?

• Common OEM replacement models: 3–7 business days from dedicated stock
• Standard range (non-stock sizes): 4–6 weeks manufactured to order
• Emergency turbine-down orders: Priority production — contact us for expedited lead time commitment
• Volume / fleet programs: Blanket orders with consignment stock at your O&M warehouse, covering most common Vestas, GE, and Siemens yaw gearbox models

Turbine down and need a fast replacement? Contact our wind turbine gearbox engineers — we respond within 2 hours to turbine-down requests.
