What Are A Planetary Gearboxes?
A planetary gearbox is a type of gear system that uses planetary gears to transmit torque and rotational speed between input and output shafts. Planetary gearboxes are also commonly referred to as epicyclic gearboxes due to the motion of the planetary gears.

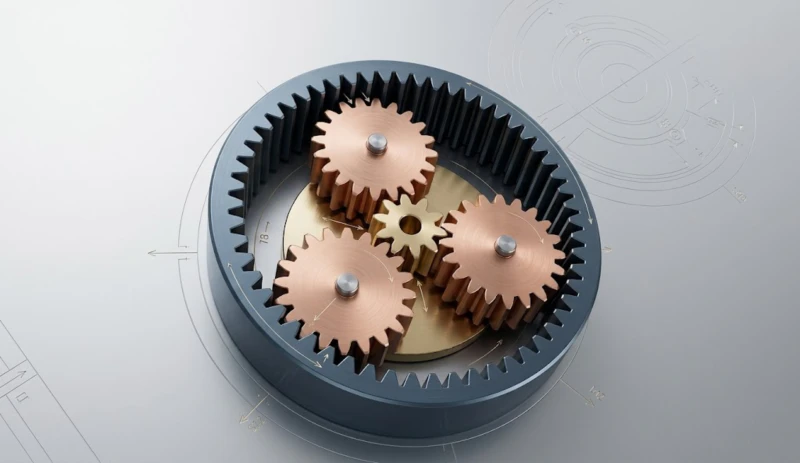

The planetary gearbox consists of three main components: the sun gear, the planet gears, and the ring gear. The sun gear is located at the center and is driven by the input shaft. The planet gears are positioned around the sun gear and are connected to a carrier that rotates around the sun gear. The ring gear is located on the outside and meshes with the planet gears.
When the sun gear rotates, it drives the planet gears, which in turn rotate around the sun gear and mesh with the ring gear. This causes the ring gear to rotate in the opposite direction of the sun gear, resulting in torque and speed being transferred to the output shaft.
Planetary Gearboxes For Sale
-
High speed micro hydraulic motor planetary gearbox
-
High-speed micro-hydraulic motor planetary gearbox High-performance planetary gear motor precision reducer
-
Planetary reduction speed motor gearbox
-
Precision Gearbox Planetary Gearbox Ratio 10:1 Reducer Planetary Gearbox
-
Precision planetary gearbox
-
Spur planetary gearbox
Application of Planetary Gearboxes
Robotics
Planetary gearboxes are used in robotics to provide high torque and reduction in a compact package.
Machine tools
Planetary gearboxes are used in machine tools to provide high torque and speed reduction for spindles and other rotating components.
Packaging equipment
Planetary gearboxes are used in packaging equipment to provide high torque and speed reduction for conveyors, motors, and other rotating components
Medical devices
Planetary gearboxes are used in medical devices to provide high torque and speed reduction for a variety of applications, such as surgical tools, imaging equipment, and patient monitoring systems.
Food and beverage processing
Planetary gearboxes are used in food and beverage processing to provide high torque and speed reduction for a variety of applications, such as conveyors, motors, and pumps.
Aerospace
Planetary gearboxes are used in aerospace applications, such as aircraft engines, landing gear, and flight control systems. These applications require high torque and speed reduction in a compact package, which is why planetary gearboxes are a popular choice.
How an Planetary Gearboxes works?
The sun gear is the central gear that is driven by the input shaft. The planet gears are mounted on a carrier that rotates around the sun gear. The ring gear is the outer gear that is the output of the planetary gearbox.
The planet gears mesh with both the sun gear and the ring gear. As the sun gear rotates, it drives the planet gears. The planet gears, in turn, drive the ring gear. The output shaft is connected to the ring gear.
The gear ratio of a planetary gearbox is determined by the number of teeth on the sun gear, the number of teeth on the planet gears, and the number of planet gears. The greater the number of teeth on the sun gear, the lower the gear ratio. The greater the number of teeth on the planet gears, the higher the gear ratio. The greater the number of planet gears, the higher the gear ratio.
Planetary Gearboxes Advantage
High torque density
Planetary gearboxes can achieve a high gear ratio in a compact package, making them ideal for applications where space is limited.
High efficiency
Planetary gearboxes are very efficient, typically achieving efficiencies of 90% or higher.
Long life
Planetary gearboxes are very durable and can withstand high loads and shock.
Smooth operation
Planetary gearboxes operate smoothly and quietly, making them ideal for applications where noise is a concern
Compact size and light weight
Planetary gearboxes are typically smaller and lighter than other types of gear reducers, making them ideal for applications where weight and space are a concern.
Wide range of applications
Planetary gearboxes can be used in a wide variety of applications, including robotics, machine tools, 3D printers, automated guided vehicles (AGVs), packaging equipment, medical devices, food and beverage processing, and aerospace.
How To Maintain The Planetary Gearboxes?
Planetary gearboxes are a reliable and durable type of gear reducer, but they still require regular maintenance to ensure their long life. Here are some maintenance tips for planetary gearboxes:
Check oil level and condition regularly. The oil in a planetary gearbox helps lubricate the gears and prevents wear.
Check the gears for wear and damage. The gears in planetary gearboxes are prone to wear.
Lubricate the gears properly. Gears in planetary gearboxes should be properly lubricated to prevent wear.
Keep the gearbox clean and free of debris. Debris can enter the planetary gearbox and damage the gears.
Check the seals for leaks. Seals in planetary gearboxes help prevent oil leakage.
Have the transmission maintained by a qualified technician on a regular basis. A qualified technician can inspect the transmission and spot any potential problems.
